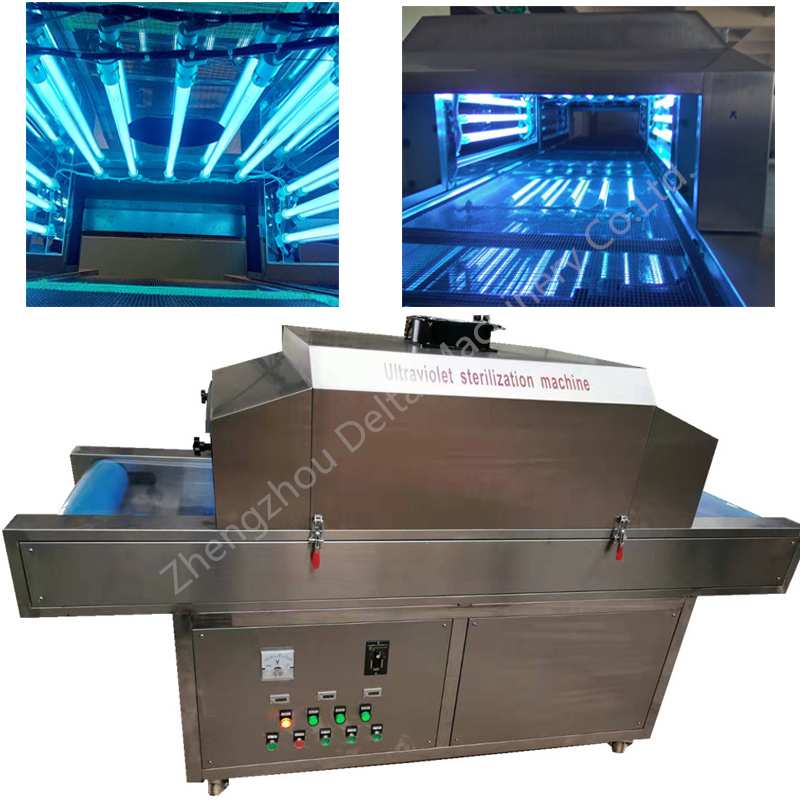

UV Sterilizer UV Sterilizing Food Aquarium Fish Tank Sterilization

This UV Sterilizer UV Sterilizing Cabinet Ultraviolet Food Sterilization utilize UV radiation sterilization methods to effectively eliminate microorganisms such as E. coli and fungi present in food, causing a significant decrease in bacterial counts and thus serving a critical role in food sterilization processes.With Wide range of applications of this UV Sterilizer UV Sterilizing Cabinet Ultraviolet Food Sterilization: This technology is widely applied in hospitals, food processing, tea and beverage packaging equipment, food factories, cosmetic plants, dairy factories, breweries, beverage production facilities, bakeries, cold storage rooms, and more.

The principle behind UV sterilization: Research shows that UV primarily works by inflicting radiative damage upon microorganisms, impairing the function of nucleic acids, thereby killing them and achieving disinfection goals. Exposure to UV radiation results in the breaking of bonds and strands within nucleic acids, cross-linking between chains, and the formation of photochemical products, all of which alter the biological activity of DNA, rendering the microorganisms unable to replicate themselves.

Parameters of UV Sterilizer UV Sterilizing Cabinet Ultraviolet Food Sterilization:

Model	DLT-SJ-2000	DLT-SJ-3000	DLT-SJ-4000	DLT-SJ-5000
Conveyor belt length	2000mm	3000mm	4000mm	5000mm
Conveyor belt width	500mm	500mm		500mm
Sterilizing length	1000mm	2000mm	3000mm	4000mm
UV lamp source(20w UV tube)	16 sets	32 (2*16) sets	48 (3*16)sets	64 (4*16) sets
Weight	220kg	320kg	420kg	520kg
Dimension	20007501450mm	30007501450mm	40007501450mm	50007501450mm
Power	1.75kw	2.15kw	2.55kw	2.95kw
Voltage	220v, 50Hz	220v, 50Hz	220v, 50Hz	220v, 50Hz
Conveyor belt speed	0-5m/min	0-5m/min	0-5m/min	0-5m/min
Input belt size	500mm	500mm	500mm	500mm
Output belt size	500mm	500mm	500mm	500mm
Height of input & output mouth	200mm	200mm	200mm	200mm
Belt height from ground	750mm±20mm	750mm±20mm	750mm±20mm	750mm±20mm

Features of UV Sterilizer UV Sterilizing Cabinet Ultraviolet Food Sterilization:

Ultraviolet light source for effective radiation: UVC ultraviolet germicidal lamp tubes provide multi-directional sterilization and disinfection from top to bottom and side-to-side within the space.
PTFE Conveyor Belt: Features premium high-temperature resistant silicone strips that prevent deviation, boasts a well-designed structure for easy conveying and offers stable performance. Customization options with different materials are available, each with their unique characteristics:PVC Conveyor Belt: Strong load-bearing capacity, durable, and reliable in quality.PTFE Conveyor Belt: Offers excellent weather resistance, anti-aging properties, and an extended service life.Stainless Steel Conveyor Belt: Resistant to corrosion, features a bright surface, and is wear-resistant.
Insulation Material of UV Sterilizer: Comprises a double layer of vacuum silica-alumina plus silk cotton for insulation purposes.
Control Panel of UV Sterilizer: Synchronizes data for convenient viewing, includes emergency stop buttons, and overload protection features.
Work Area Tunnel Exterior: A set made of 1.2mm high-quality stainless steel.
Work Area Tunnel Interior: A set of 1.0mm mirror-finished stainless steel panels.
