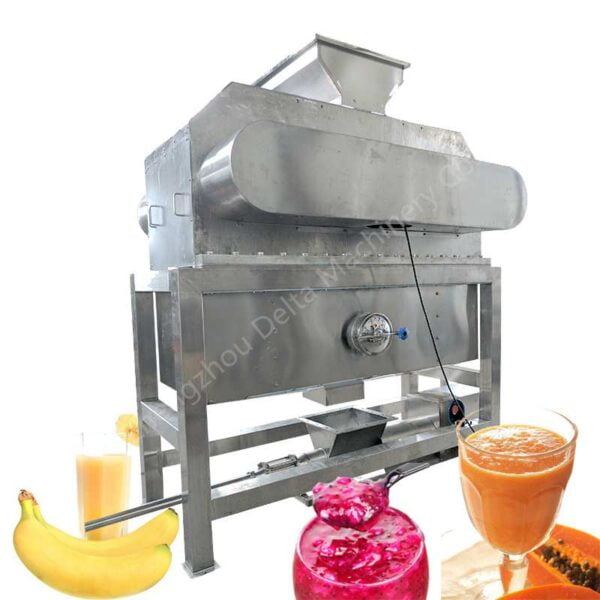

Application Range: This Tropical fruit Juice Pulper with Peeler is specifically designed for peeling, juicing, and pulping a variety of tropical fruits such as pineapples (Ananas), passionfruit (Passiflora edulis), papayas, citrus fruits, dragon fruits, and bananas.Structural Characteristics: The machine primarily consists of a peeling roller, halving separation screen, panel, frame, pulp discharge chute, peel discharge bin, feed hopper, and various transmission components. All parts that come into contact with the product and the machine frame are fabricated from food-grade SUS304 stainless steel to ensure durability and hygiene.
Parameters of Tropical fruit Juice Pulper with Peeler for papaya dragon fruit banana:
| Model | Capacity | Power | Dimension |
|---|---|---|---|
| DLT-QPZJ | 3-5T/H | 8KW | 1920*1350*2200mm |
Working Principle: In operation, raw fruits are initially cut in half by a halving blade. One half of the fruit is conveyed by rotating rollers towards a squeezing channel. The juice and pulp pass through the sieve and are expelled, while the peel separates and exits the machine via a dedicated peel outlet. Depending on the type of fruit being processed, the clearance in the squeezing channel can be adjusted to optimize the output quality and achieve desired results.
