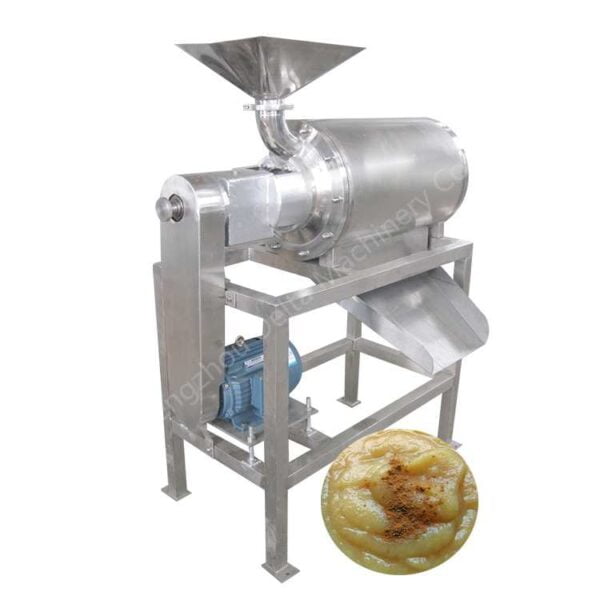

Fruit Pulping Machine with Single-Channel Form

Scope of Application: This Fruit Pulping Machine is suitable for pulping and separating crushed tomatoes, kiwis, strawberries, sea buckthorn, grapes, as well as pre-cooked softened fruits such as hawthorn and dates. It can also be used to turn chopped vegetables such as greens, peppers, and celery into vegetable puree juice while separating vegetable fibers.It is also suitable for pitting and pulping large-seeded fruits such as mangoes, apricots, and plums.The pulping speed can be set with variable frequency speed control, and the sieve is of a round-hole design with multiple aperture options based on user requirements. The machine is available in Single-channel forms for automatic separation of pulp and slag. Also There are Double-channel forms and three-channel forms for optional.

Parameters Of Fruit Pulping Machine with Single Channel:

ModelCapacityPowerDimension
DLT-DJ1-0.120.12T/H1.5KW1000*830*948mm
DLT-DJ1-2.52.5T/H5.5KW1450*770*1523mm
DLT-DJ1-3.53.5T/H7.5KW1700*900*1600mm
DLT-DJ1-5.05.0T/H11KW1750*1000*1700mm



Structural Features: The machine mainly consists of a feeding hopper, slag outlet, juice outlet, body, sieve, pulping scraper, core removal rotor, frame, transmission components, etc. The parts in contact with materials and the frame are made of SUS304 stainless steel.
